HT76 Heavy Duty Cable Tray

This cable tray range is a complete cable support system that is easily assembled on site. The HT76 tray system is designed to carry electrical cables in a horizontal and vertical application, up to a maximum width of 609mm. HT76 system is recommended in a heavy duty applications. With a full range of accessories, this product provides an economical, fexible and user-friendly solution that will satisfy the installing contractor’s as well as the end user’s electrical cabl managing needs.

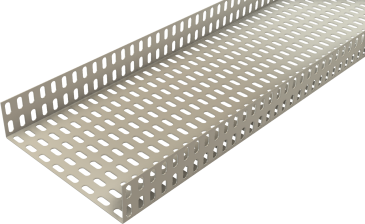

Cable Ladder Straight

Straight

Cable Ladder Int " Ext Bend

Ext Bend

Cable Ladder 4-way

4-way

Cable Ladder Splice

Splice

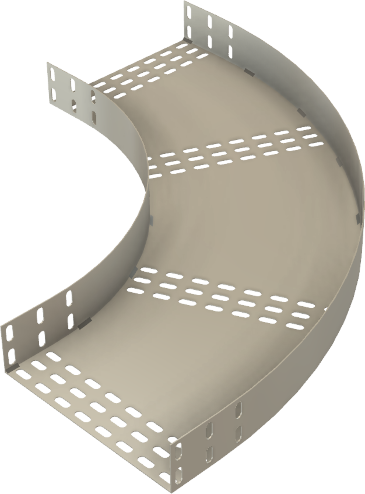

Cable Ladder Hor Bend

Hor Bend

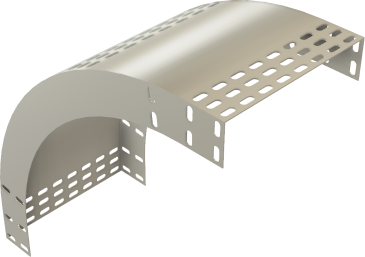

Cable Ladder Int Bend

Int Bend

Cable Ladder Tee

Tee

WIDTH 3M STRAIGHT HORIZONTAL BEND INTERNAL BEND EXTERNAL BEND SPLICE SET
76 CMS-17683 CMS-2051 CMS-2061 CMS-2067 CMS-17718
114 CMS-17695 CMS-17744 CMS-17764 CMS-17765 CMS-17718
152 CMS-17753 CMS-2197 CMS-2056 CMS-2062 CMS-17718
228 CMS-2198 CMS-2053 CMS-2057 CMS-2063 CMS-17718
304 CMS-2199 CMS-2200 CMS-2058 CMS-2064 CMS-17718
457 CMS-17682 CMS-2054 CMS-2059 CMS-2065 CMS-2011
609 CMS-2285 CMS-2055 CMS-2060 CMS-2066 CMS-2011

SPECIFICATION

Product Type Horizontally & vertically mounted cable trays
Available Finish Hot Dip Galvanized
Material Grade Commercial quality mild steel
Material Thickness t=1.6 mm
Standard Length 3.0m
Dim H May Vary 38 & 76mm "U" profile
Available Widths (mm) 76, 114, 152, 228, 304, 457 & 609
